Vertical lifting platforms for disabled people, portable ramps

This guidance assists in the selection of a suitable powered lifting platform
When selecting a powered lifting platform, consider if the needs of the user are likely to change in the future. Select a lifting platform with a rated load that is capable carrying the maximum foreseeable load.
Where either manual or automatic operation are optionally available for devices such as doors, barriers or hinged platforms, consider which is more appropriate for the user.

1. Control (operating) devices
Consider the position, type and number of operating controls that would suit users with different disabilities.
Consider whether a key switch, electronic card or similar means is necessary to restrict the use of lifting platforms to authorised users.

2. Location of the lifting platform
Check if the proposed location of the lifting platform is suitable. For example, check the following:
a) that the installation will not obstruct normal activities in and around the building,
b) that the site location proposed supporting structure is strong enough to support the lifting platform,
c) that adequate wheelchair manoeuvring space will be available at each landing level served (approx. 1500 x 1500 mm).

3. Electrical supply and lighting
Ensure that a suitable electrical supply is available.
Ensure that adequate lighting is available on the landings.

4. Operating/emergency instructions:
Ensure that operation of the lifting platform is demonstrated to the user and that the user is fully instructed on its safe use including
a. instructions on the correct emergency operating procedure in case of breakdown,
b. the names, addresses and telephone numbers of persons to contact for emergency services.

5. Alarm system:
Consideration should be given to the desirability of providing an alarm system.

GULDMANN & BARDUVA

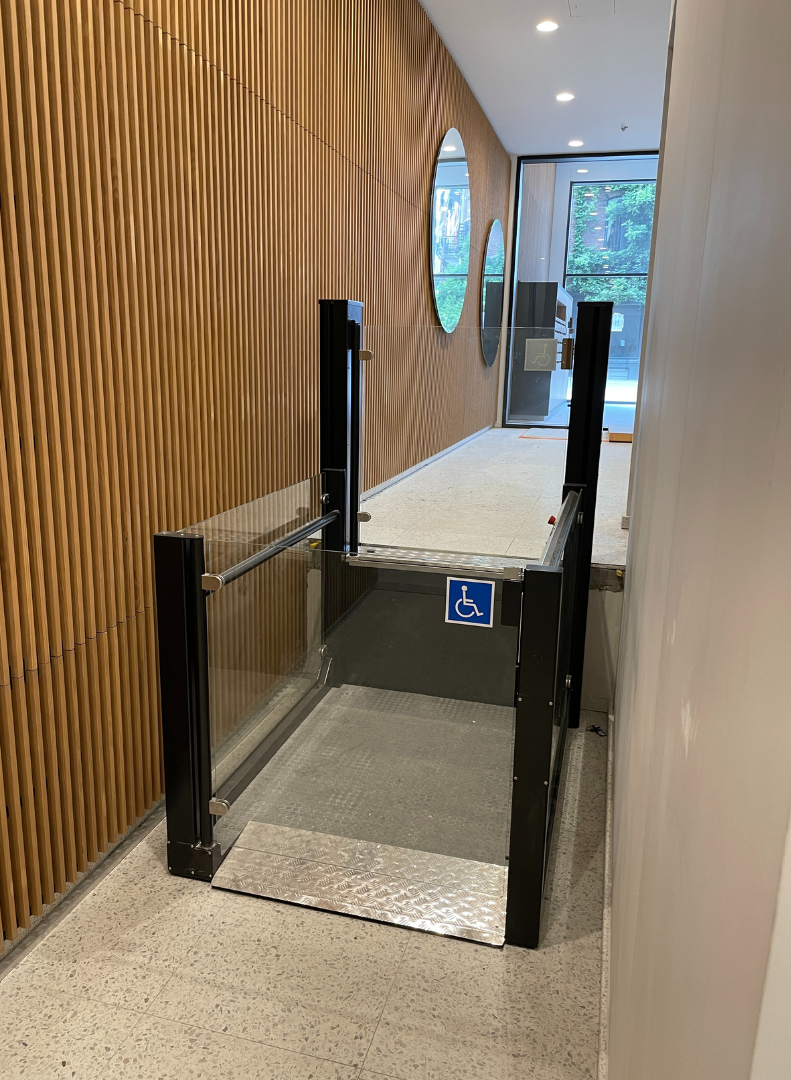

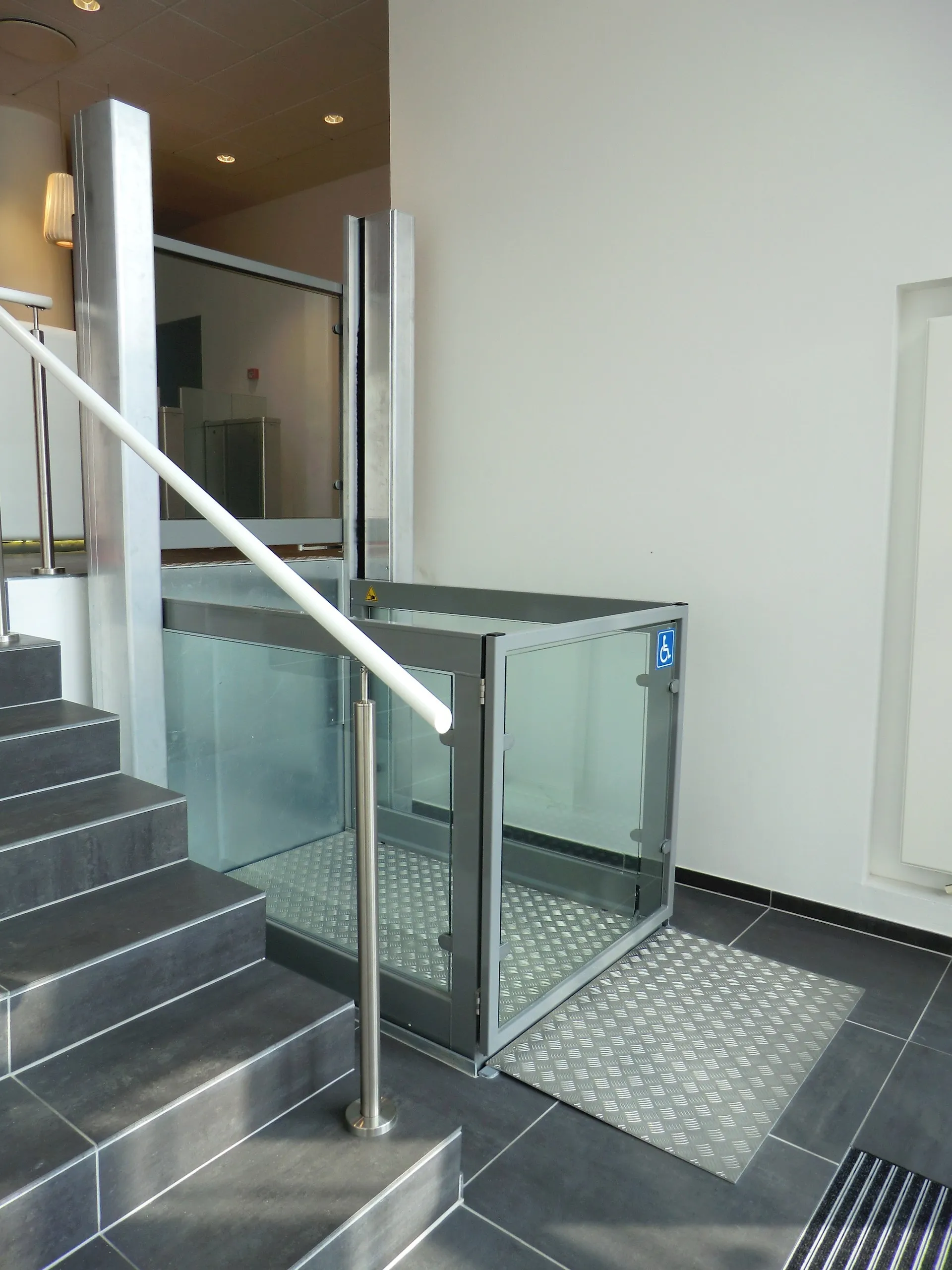

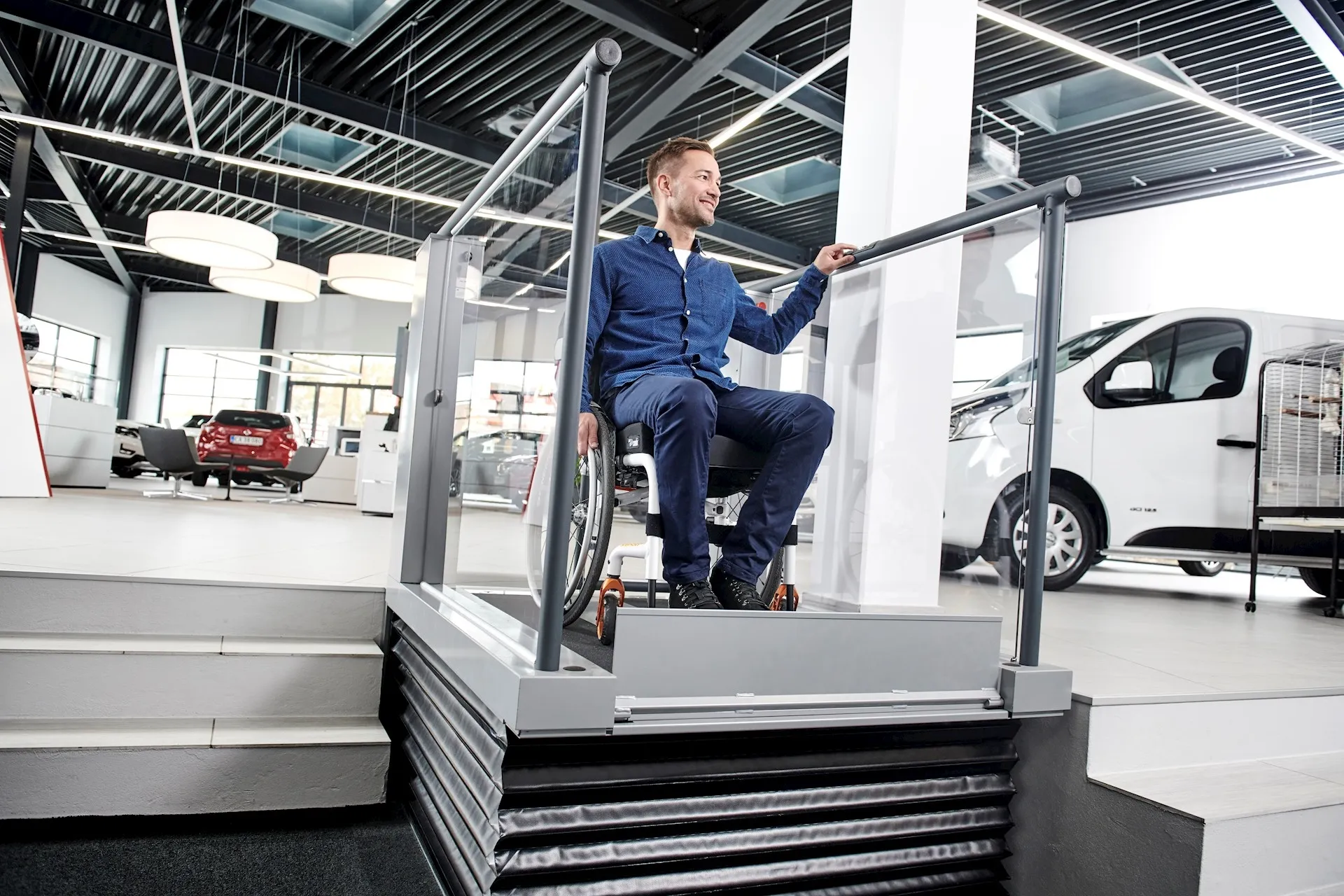

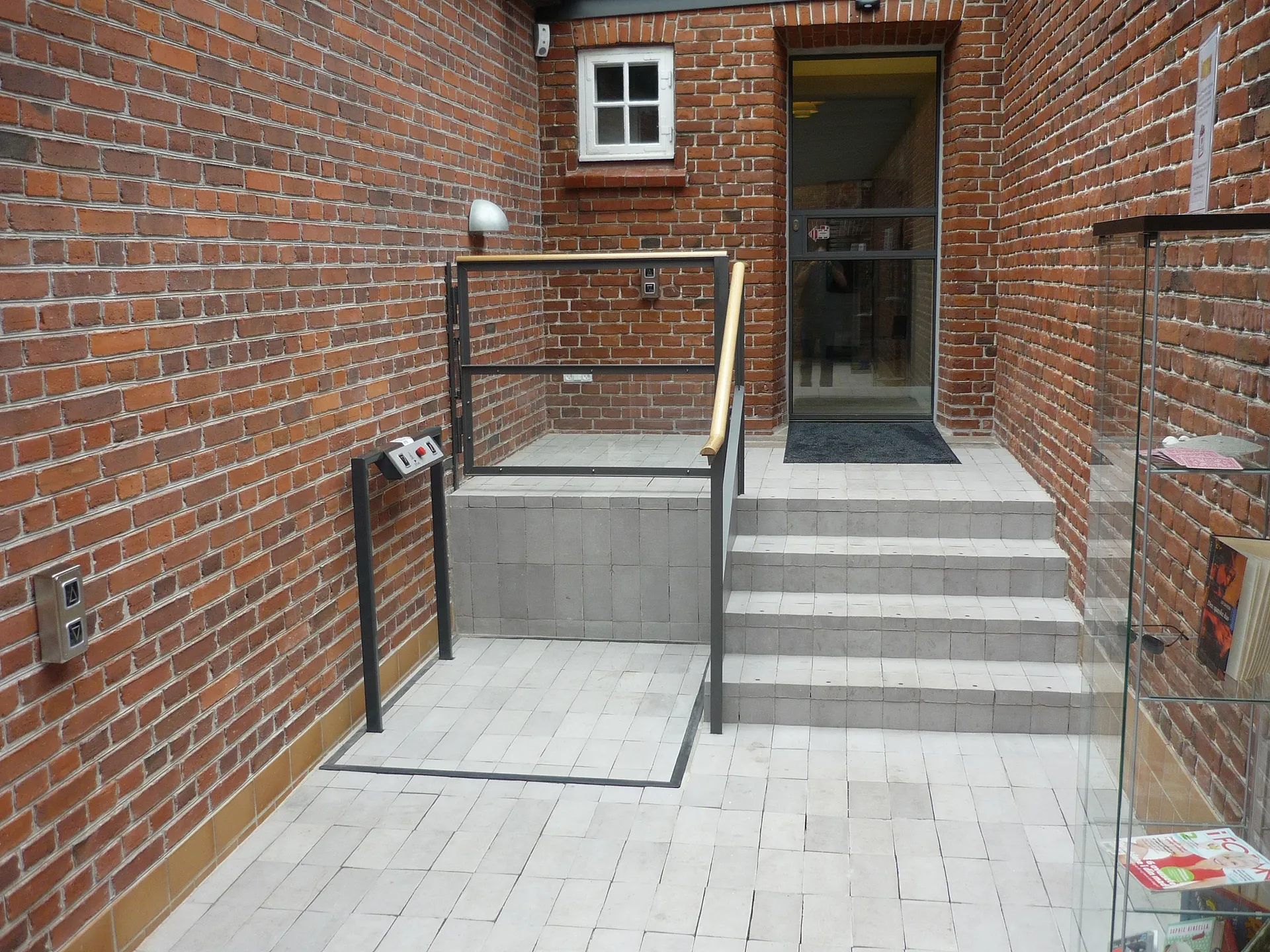

Type	LP5+	LP7+	LP8	RB150	LP50
Platform, useful	1600 x 896 mm	1600 x 900 mm	1524 x 924 mm	1100 x 1400 mm	1524 x 924 mm
Max height	830 mm	1500 mm	3000 mm	3000 mm	1000 mm
Lifting capacity	360 kg	350 kg	352 kg	400 kg	375 kg
Electrical power	230V – 17.4W	230V – 600W	230V – 550W	220-240 V, 1 phase, 25A 380-400 V, 3 phases, 16A	230V – 625W
Application	private/public	private/public	private/public	private/public	private/public
Photos

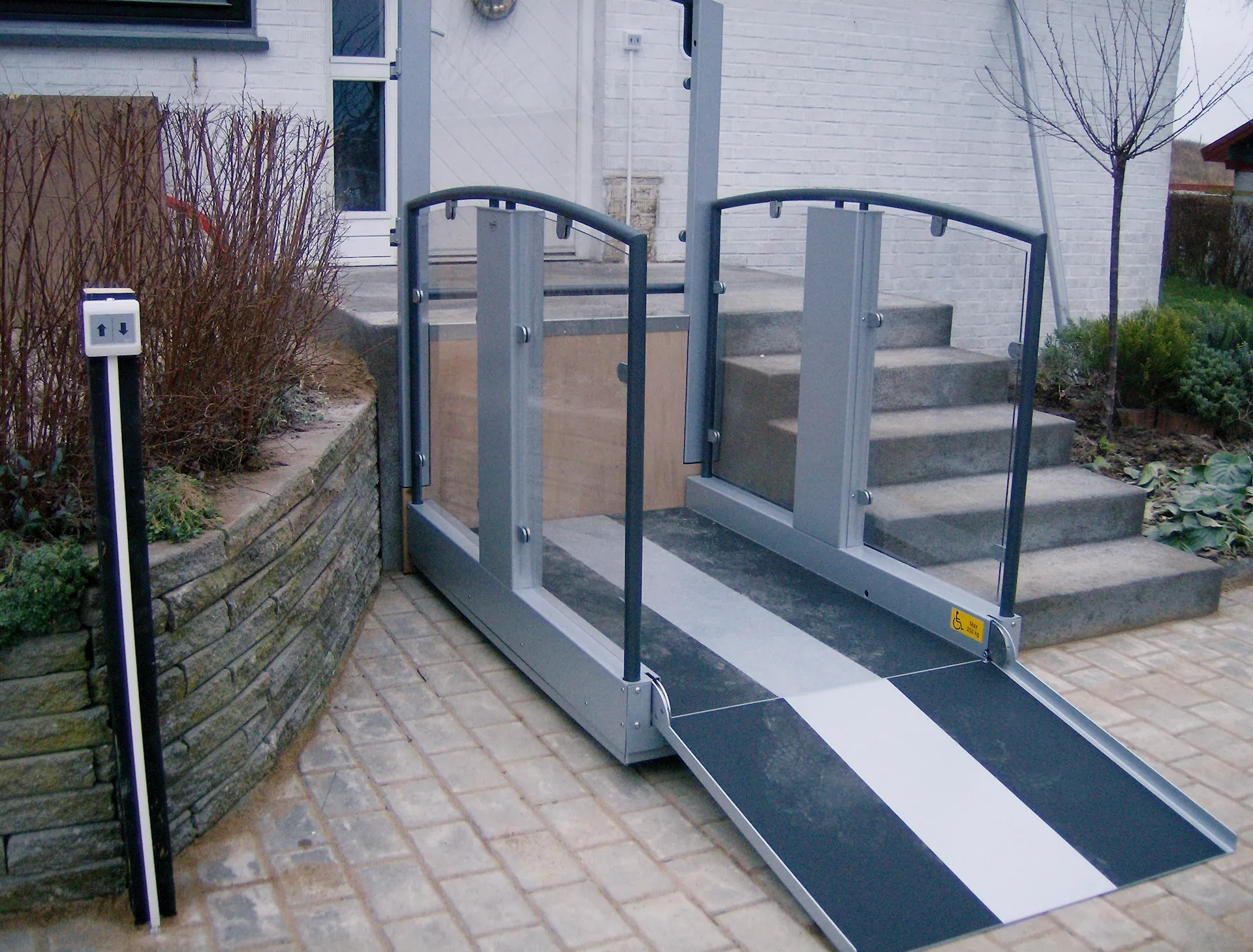

The types LP1, 5, and 8 can also be recessed into the floor. The ramp can then be shorter. Easier for the user.
The types LP1 to LP12 can be installed both indoors and outdoors. If outdoors, proper drainage of the installation pit is required.
For lifting heights above 500 mm, LP5 and LP8 are equipped with a lockable door at the top access point.

Special dimensions? Other types? Ask about it.

Standards:
ISO 9386-1: motorized lifting platforms for disabled persons.
EN 60601-1 and EN 60601-1-2: medical equipment.
2006/42/EC: Machinery Directive.

‘Stepless’ portable ramps are available in a broad range of shapes and designs – one of the largest selection in the industry. The ramps are used to negotiate steps and curbs, assisting wheelchair users into cars or whenever there is a need to overcome height differences.

High safety level:
– integrated anti-skid surface with a very high wear resistance,
– strong by using high grade aluminium,
– both ends are covered with non-skid surfaces to avoid slipping away and protect you car.

Maintenance free:
– made of weather resistant materials,
– easy to clean.

Recycling:
– all materials can be recycled.

New design:
– easy to use,
– soft and round handgrip for ease of use, which feels warm,
– adjustable length,
– strong, doesn’t rattle in your car during travel. Cast nylon guides provide a fluent and silent length adjustment and wipe the dust.

Choose the right type:
– the type depends of the capabilities of the user – maybe of the caregiver – and depends of the available space, the load and the height difference.
– a pair of small ramps or one wide ramp? If the wheels are not in line like on 3-wheel scooters, you should use either 3 small ramps or one wide ramp,
– a narrow or wide plain ramp longer than 1,5 m can hardly be transported in your car. choose a foldable or telescopic ramp,
– a telescopic ramp can be adjusted to a shorter length for lower heights. A foldable ramp will always need the full length,
– a “Lite” ramp weighs at most only 9,5 kg and is of course much easier to set up by the user or the companion. The maximum length is however limited to 2,05 m and consequently to 0,4 m heights.

Take the proper length:
– always select the longest possible ramp: the longer the ramp, the less the gradient to overcome.
– for an independent user of manual wheelchair we recommend a maximum slope of 1:7.
– for a manual wheelchair pushed by a helper or an electric wheelchair, the maximum slope should be 1:5.
Example: for 200 mm height difference, the ramp length should be 1 m (1:5) or 1,4 m (1:7).

	reference	max/min length, mm	outer/inner width, mm	max.load kg	weight/piece kg
Plain ramp, for uniform height differences, this lightweight ramp is often used in a single location. Lowest own weight.
	30000-050	500	260/182	350	1,5
	30000-100	1050	260/182	350	3,2
	30000-130	1300	260/182	350	3,9
	30000-155	1550	260/182	350	4,7
	30000-200	2000	260/182	200	6,0
Telescopic ramp: flexible ramp that can be used in many places and for different level changes because their length can be adjusted. Needs less space for storing. Also available per 3 ramps for scooters!
	30015-100	1000/677	279/182	350	3,7
	30015-150	1500/927	279/182	350	5,1
	30015-200	2000/1177	279/182	350	6,6
	30015-250	2500/1427	279/182	200	8,0
	30015-300	3000/1677	279/182	200	9,5
Folding ramps, for uniform height differences. Compact when storing. Easier to transport than plain ramps.
	30020-110	1100/580	260/182	350	4,0
	30020-160	1600/830	260/182	350	5,7
	30020-210	2100/1080	260/182	350	7,2
	30020-260	2600/1330	260/182	200	8,6
	30020-310	3100/1580	260/182	200	10,1
Wide plain ramp, ideal for use when the ramp is kept permanently in place, especially when used by 3-wheeled scooters. Provides higher safety for the user and caregiver.
	30030-100	1000	880/770	325	9,7
	30030-125	1250	880/770	325	12,1
	30030-150	1500	880/770	325	14,4
	30030-200	2000	880/770	325	19,1
	30030-300	3000	880/770	200	28,6
Wide folding ramp, to be used in several places with about the same height like cars. Provides higher safety for the user and caregiver. Needs less space to store than the wide plain ramp.
	30040-150	1500/780	880/770	325	17,5
	30040-200	2000/1030	880/770	325	22,2
	30040-250	2500/1280	880/770	200	26,9
	30040-300	3000/1530	880/770	200	31,7
EasyFold ramp. It folds once and than carried like a suitcase. Folded width = 405 mm 30085-165: 3-fold ramp with a wide driving surface which when folded takes up minimal space during transport and storage. The lock ensures that the ramp remains folded during transport. With a maximum load of 350 kg the ramp is suitable for electric wheelchairs and scooters.
	30080-095	935	776/760	350	7,8
	30080-120	1185	776/760	350	9,0
	30080-150	1485	776/760	350	11,4
	30080-180	1785	776/760	350	13,4
	30080-210	2085	776/760	350	15,8
	30085-165	1635	776/760	350	13,4
Telescopic EasyFold ramp, easy to carry, position and unfold, due to the ease of length adjustment. Folded width = 405 mm
	30070-180	1830/1120	820/760	325	16,4
	30070-210	2130/1270	820/760	325	18,9
	30070-240	2440/1430	820/760	325	21,4
	30070-300	3050/1730	820/760	200	26,4
“Lite” ramp, feather light for a trip or journey, – no doubt this is the lightest ramp on the market, thanks to glass & graphite fibres, – no balance problem when hung on the wheelchair, – non-skid surface, – single hinge, easy to handle by user or caregiver.
	30100-070	700	730	300	3,5
	30100-000	transport bag for the 700 mm long ramp
	30100-085	850	780	300	4,5
	30100-125	1250	780	300	6
	30100-165	1650	780	300	7,5
	30100-205	2050	780	300	9,5

Other sizes for the aluminium ramps
– height of edge: 46 mm,
– angle of contact: max. 12°,
– contact surface of suitcase ramps: 90 mm,
– contact surface of other ramps: 110 mm.

CE mark
– 93/42/EC and amendments: medical devices, class 1

Various types for various applications,
For indoor or antislip versions (types “S”) for outdoor,
Width: 75 or 100 cm,
Color: grey,
Suitable for wheel chairs but also for trolleys, bicycles and other vehicles.

Stepless Excellent ramp kits are sold as kits.

They are easy to install in 10 to 15 minutes thanks to the enclosed installation guide and accessories for set up and final adjustments. The 2 upper layers are separate to achieve the exact height.

Extremely strong:
not only for wheelchairs but also for carts, tractors, lawn mowers and even a 62 tons weighing Leopard tank. Look at the movie on YouTube (3’30”).

A green and 100% non toxic product:
– made of PELD or PEHD, both polyethylene consisting exclusively of carbon and hydrogen,
– no softeners, such as phthalates or similar compounds,
– no solvents that can be released to the surroundings as VOCs (volatile organic compounds),
– no chlorine, no hydrochloric acid in the event of fire,
– PELD and PEHD can be 100% regenerated.

Built according to EN 12182, 1998: technical aids for disabled people – General requirements and test methods

Indoor use

Step height

width 75 cm

width 100 cm

from
0 to 2,4 cm

kit 0 : width 75 x length 12,5 x height 2,4 cm

Content of this kit:
3 ramps
3 adjustment keys
3 mounting pads
3 screws
6 F-locks
3 double adhesive tape

Excellent kit 0

kit 100 : width 100 x length 12,5 x height 2,4 cm

Content of this kit:
4 ramps
4 adjustment keys
4 mounting pads
4 screws
8 F-locks
4 double adhesive tape

Excellent kit 100

from 2,4 to 4,2 cm

kit 1 : width 75 x length 25 x height 4,2 cm

Content of this kit:
2 ramp layers, individually pre-assembled
3 adjustment keys
3 mounting pads
3 screws
12 R-locks

Excellent kit 1

kit 101 : width 100 x length 25 x height 4,2 cm

Content of this kit:
4 ramps
4 adjustment keys
4 mounting pads
4 screws
8 F-locks
4 double adhesive tape

Excellent kit 101

from 4,2 to 7,8 cm

kit 2 : width 75 x length 50 x height 7,8 cm

Content of this kit:
3 ramp layers, individually pre-assembled
3 adjustment keys
3 mounting pads
3 screws
6 stoppers
9 T-locks
24 R-locks

Excellent kit 2

kit 102 : width 100 x length 50 x height 7,8 cm

Content of this kit:
3 ramp layers, individually pre-assembled
4 adjustment keys
4 mounting pads
4 screws
12 F-locks
32 R-locks

Excellent kit 102

from 7,8 to 11,4 cm

kit 3 : width 75 x length 75 x height 11,4 cm

Content of this kit:
3 ramp layers, individually pre-assembled
3 adjustment keys
3 expansion guides
3 mounting pads
3 screws
12 stoppers
9 T-locks
24 R-locks

Excellent kit 3

kit 103 : width 100 x length 75 x height 11,4 cm

Content of this kit:
3 ramp layers, individually pre-assembled
4 adjustment keys
4 expansion guides
4 mounting pads
4 screws
16 stoppers
12 F-locks
32 R-locks

Excellent kit 103

from 11,4 to 15 cm

kit 4 : width 75 x length 100 x height 15 cm

Content of this kit:
3 ramp layers, individually pre-assembled
3 adjustment keys
3 expansion guides
3 mounting pads
3 screws
12 stoppers
9 T-locks
24 R-locks

Excellent kit 4

kit 104 : width 100 x length 100 x height 15 cm

Content of this kit:
3 ramp layers, individually pre-assembled
4 adjustment keys
4 expansion guides
4 mounting pads
4 screws
16 stoppers
12 F-locks
32 R-locks

Excellent kit 104

from
0 to
1,5 cm add-on

Add-on kit 0 : width 75 x length 6,2 x height 1,5 cm

Used for extra height adjustment up to 1,5 cm on Kit 1-4 or as a repair set when re-locating Kit 1-4.

Content of this kit:
3 small ramps
3 adjustment keys
3 mounting pads
3 screws
6 stoppers
16 T-locks
19 R-locks

Excellent Add-on kit 0

Add-on kit 100 : width 100 x length 6,2 x height 1,5 cm

Used for extra height adjustment up to 1,5 cm on Kit 101-104 or as a repair set when re-locating Kit 101-104.

Content of this kit:
4 small ramps
4 adjustment keys
4 mounting pads
4 screws
8 stoppers
16 T-locks
19 R-locks

Excellent Add-on kit 100

Various types for various applications,
Antislip versions (types “S”) for outdoor or for indoor use,
Width: 75 or 100 cm,
Color: grey,
Suitable for wheel chairs but also for trolleys, bicycles and other vehicles.

Stepless Excellent ramp kits are sold as kits.

They are easy to install in 10 to 15 minutes thanks to the enclosed installation guide and accessories for set up and final adjustments. The 2 upper layers are separate to achieve the exact height.

Extremely strong:
not only for wheelchairs but also for carts, tractors, lawn mowers and even a 62 tons weighing Leopard tank. Look at the movie on YouTube (3’30”).

Built according to EN 12182, 1998: technical aids for disabled people – General requirements and test methods

For Outdoor use with SlipStop
Step height	width 75 cm	width 100 cm
from 2,4 to 4,2 cm	kit 1S : width 75 x length 25 x height 4,2 cm Content of this kit: 2 ramp layers, individually pre-assembled 3 adjustment keys 3 mounting pads 3 screws 12 R-locks	kit 101S : width 100 x length 25 x height 4,2 cm Content of this kit: 4 ramps 4 adjustment keys 4 mounting pads 4 screws 8 F-locks 4 double adhesive tape
from 4,2 to 7,8 cm	kit 2S : width 75 x length 50 x height 7,8 cm Content of this kit: 3 ramp layers, individually pre-assembled 3 adjustment keys 3 mounting pads 3 screws 6 stoppers 9 T-locks 24 R-locks	kit 102S : width 100 x length 50 x height 7,8 cm Content of this kit: 3 ramp layers, individually pre-assembled 4 adjustment keys 4 mounting pads 4 screws 12 F-locks 32 R-locks
from 7,8 to 11,4 cm	kit 3S : width 75 x length 75 x height 11,4 cm Content of this kit: 3 ramp layers, individually pre-assembled 3 adjustment keys 3 expansion guides 3 mounting pads 3 screws 12 stoppers 9 T-locks 24 R-locks	kit 103S : width 100 x length 75 x height 11,4 cm Content of this kit: 3 ramp layers, individually pre-assembled 4 adjustment keys 4 expansion guides 4 mounting pads 4 screws 16 stoppers 12 F-locks 32 R-locks
from 11,4 to 15 cm	kit 4S : width 75 x length 100 x height 15 cm Content of this kit: 3 ramp layers, individually pre-assembled 3 adjustment keys 3 expansion guides mounting pads 3 screws 12 stoppers 9 T-locks 24 R-locks	kit 104S : width 100 x length 100 x height 15 cm Content of this kit: 3 ramp layers, individually pre-assembled 4 adjustment keys 4 expansion guides 4 mounting pads 4 screws 16 stoppers 12 F-locks 32 R-locks

Disabled people overcome ups and downs
